Boundary Conditions

By default, grids use periodic boundary conditions — field values wrap around from one edge of the domain to the other. To impose non-periodic boundary conditions, the physical boundary must be inset from the outermost grid nodes, leaving nodes outside the domain that can act as ghost nodes.

Boundary Placement

Important

The resolution (symbolically: G.Nx, G.Ny ..., concrete: shape) corresponds to the full number of values in the fields, which includes ghost cells when the boundaries argument sets the boundaries inwards.

sofia automatically adjusts the spacings G.dx, G.dy, ... so that the domain extent aligns exactly with the locations of the boundaries. See the examples below for more detail.

The boundaries argument of a Grid specifies where the physical domain edges sit in index space, as insets measured from the first and last grid nodes. Each dimension is given either (assuming N is the resolution in that dimension, such that the first node lies at i=0 and the last at i=N-1):

  • a single value, for a periodic dimension. A value f places the domain edges at i = f and i = N + f, so the second edge lies one node past the last and wraps around.

  • a pair of values (lower, upper), for a non-periodic dimension. The boundaries are then at i = lower and i = N - 1 + upper. Insets point inward, so lower must be >= 0 and upper must be <= 0.

This diagram shows the meaning of the two-value input boundaries=(a,b):

 - a is the distance (in units of dx) from first
   cell center, to the right
 - b is the distance (in units of dx) from last
   cell center, to the left

          left bnd               right bnd
              |                      |
+-------+-----|-+-------+-------+----|--+-------+
:       :     | :       :       :    |  :       :
:   o   :   o | :   o   :   o   :   o|  :   o   :
:       :     | :       :       :    |  :       :
+-------+-----|-+-------+-------+----|--+-------+
    |-------->|                      |<-----|
       a * dx                          b * dx

The same specification is applied to every dimension unless a sequence of per-dimension specifications is given, one per dimension:

>>> from sofia import Grid

>>> G = Grid(ndim=2)                              # periodic in x and y
>>> G = Grid(ndim=2, boundaries=(1, -1))          # non-periodic in x and y
>>> G = Grid(ndim=2, boundaries=((1, -1), (0,)))  # non-periodic in x, periodic in y

# Quick inspection of the setup
>>> from sofia import Field, Staggered
>>> from sofia.pde import eval_expr

# Periodic - boundary on 0
# Boundary in first field value; last field value will be
# 1.0 - G.dx with G.x = (1.0-0.0)/G.Nx
>>> G = Grid(ndim=1)
>>> specs = {G: dict(shape=6, extent=(0.0, 1.0))}
>>> a = Field('a', G, Staggered.CENTER)
>>> eval_expr(a << G.x, specs).round(2)
Array([0.  , 0.17, 0.33, 0.5 , 0.67, 0.83], dtype=float64)

# Spacing is simply L/N, to make sure the domain is periodic
# and the last field value lands on -dx from the boundary
>>> G.dx.doit()
G.Lx/G.Nx

# Non-periodic - boundaries on (1, -1)
# Boundary in second field value (cell-centered field with
# boundary on the second cell center) and in second-to-last
# field value
# The first and last field values fall outside of the domain
# and are considered as ghost cells
>>> G = Grid(ndim=1, boundaries=(1,-1))
>>> specs = {G: dict(shape=6, extent=(0.0, 1.0))}
>>> a = Field('a', G, Staggered.CENTER)
>>> eval_expr(a << G.x, specs).round(2)
Array([-0.33,  0.  ,  0.33,  0.67,  1.  ,  1.33], dtype=float64)

# The default non-periodic spacing would be L/(N-1) to make the
# the right boundary coincide with the last field value, but now
# we have 2 ghost cells and the spacing is adjusted accordingly:
>>> G.dx.doit()
G.Lx/(G.Nx - 3)

# Non-periodic - boundaries on (1, -0.5)
# Boundary in second field value (cell-centered field with
# boundary on the second cell center) and halfway in between
# last two field value
# The first and last field values fall outside of the domain
# and are considered as ghost cells
>>> G = Grid(ndim=1, boundaries=(1,-0.5))
>>> specs = {G: dict(shape=6, extent=(0.0, 1.0))}
>>> a = Field('a', G, Staggered.CENTER)
>>> eval_expr(a << G.x, specs).round(2)
Array([-0.29,  0.  ,  0.29,  0.57,  0.86,  1.14], dtype=float64)
>>> G.dx.doit()
G.Lx/(G.Nx - 2.5)
Boundary locations (Staggered.CENTER, extent=(x0, x1))

boundaries

Periodic

Spacing dx

Left boundary

Left ghost cells

Right boundary

Right ghost cells

(0,)

Yes

G.Lx/G.Nx

i=0

0

i=0

0

(0.5,)

Yes

G.Lx/G.Nx

i=0.5

0

i=0.5

0

(1, -1)

No

G.Lx/(G.Nx-3)

i=1

1

i=N-2

1

(1, -0.5)

No

G.Lx/(G.Nx-2.5)

i=1

1

i=N-1.5

1

(3, -1.5)

No

G.Lx/(G.Nx-5.5)

i=3

3

i=N-2.5

2

Insets do not need to be integers. An integer inset places the boundary exactly on a node, while a half-integer inset places it midway between two nodes — that is, on a cell face for cell-centred fields.

Any node lying outside the physical domain is a ghost node. The number of ghost nodes per side is therefore determined by the insets: an inset of d leaves ceil(d) nodes outside the domain. A specification of (0.5, -2.5) leaves one ghost node at the lower edge and three at the upper edge.

There must be enough ghost nodes to support the finite-difference stencils used near the edges, usually at least discretisation_order - 1 per side, though fewer may suffice if one-sided stencils are used.

Note

The total number of points per dimension, Grid.Ns, includes both interior and ghost cells.

Example

For a visual representation of the boundaries setup, sofia.pde.drawing.draw_grid() can be used:

from sofia import Grid, Field
from sofia.pde.drawing import draw_grid

G = Grid(ndim=1, boundaries=((1.25, -1.5),))
draw_grid(G, edge="start")
draw_grid(G, edge="end")

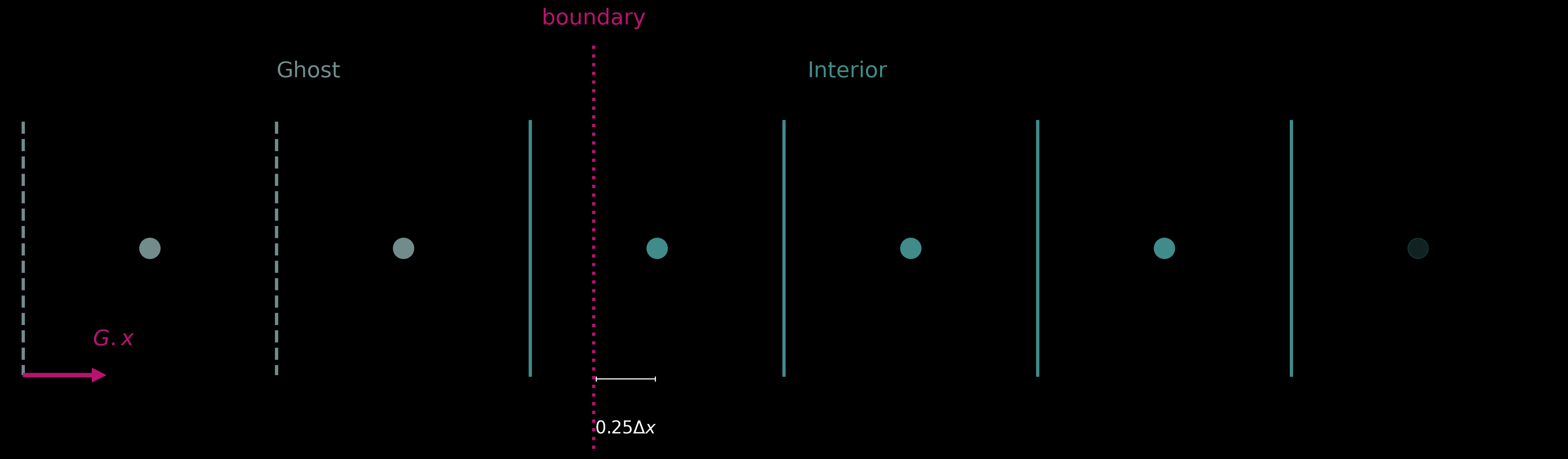

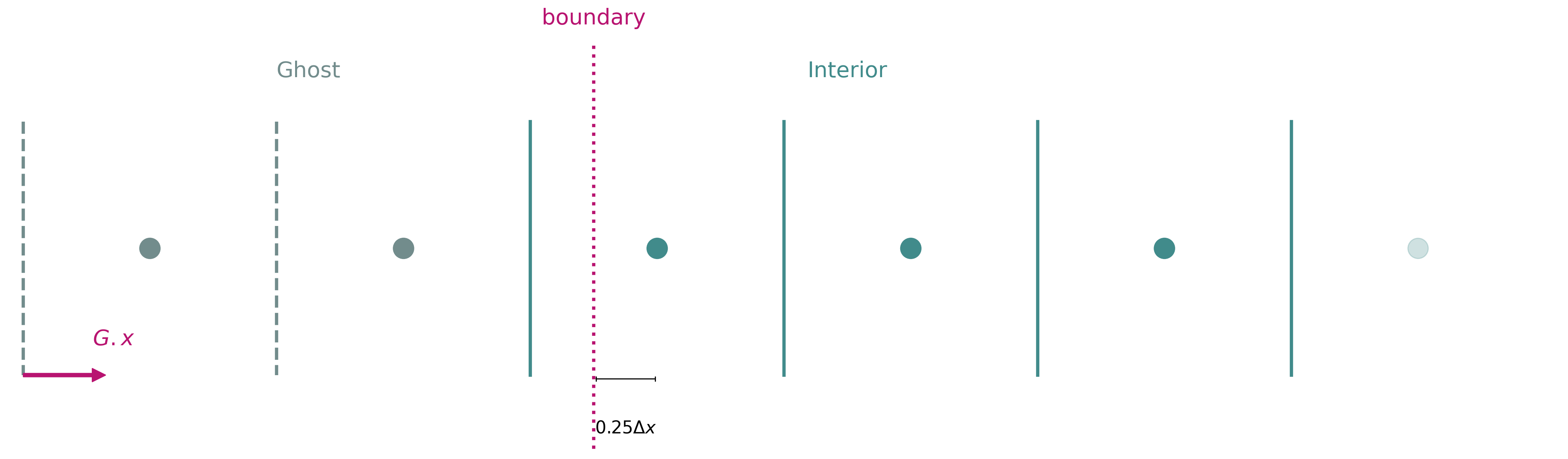

Grid boundary settings (start edge)
Grid boundary settings (start edge)

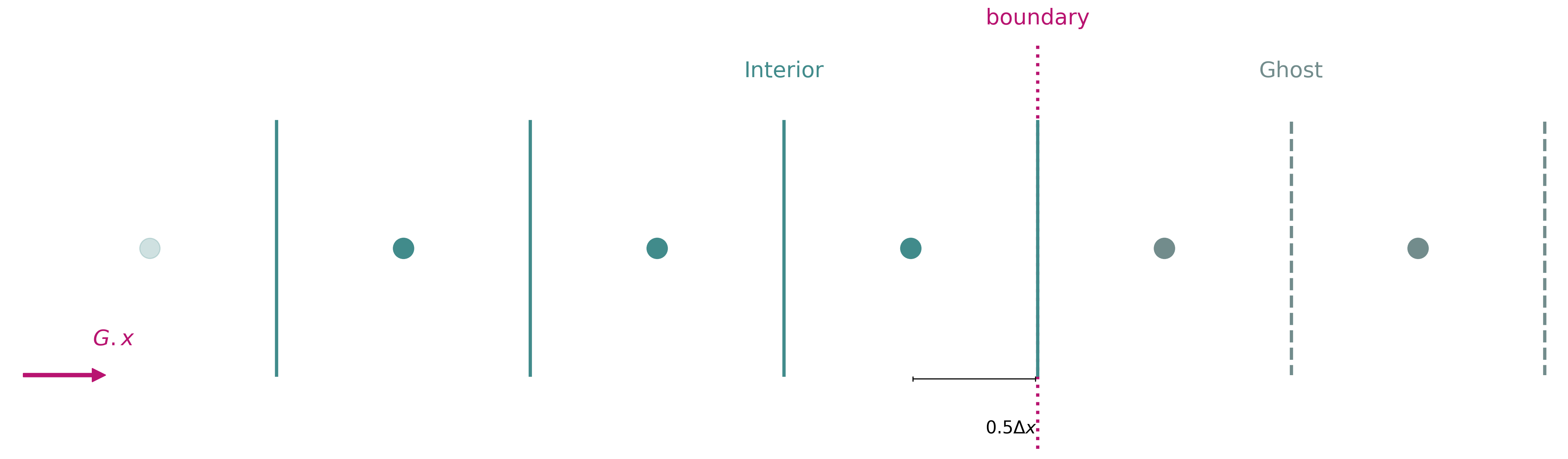

Grid boundary settings (end edge)
Grid boundary settings (end edge)

A 1D grid with 2 ghost cells and boundaries set to 0.25 and 0.5 for the left and right, respectively.

Boundary Specification

Boundary conditions can be defined using the pde.apply_boundary_conditions() function.

The simplest version of this function takes as input a tuple of pairs, each specifying a boundary condition as (condition, location), and returns a symbolic expression that combines the original interior field and equations that enforce the specified boundary conditions at the boundaries.

The condition specifies either the value of a Field (Dirichlet-type conditions) or its derivative (Neumann-type conditions), and the location the coordinate where the boundary condition takes effect. Both are specified via Sympy expressions. For instance, for Field u on Grid G:

>>> import sympy as sp
>>> from sofia import Grid, Field
>>> from sofia.pde import diff, apply_boundary_conditions

>>> G = Grid(ndim=1, boundaries=(1, -1))
>>> u = Field("u", G)

>>> bcs = (
...    (sp.Eq(u, 1), sp.Eq(G.x, G.DomainStart)),
...    (sp.Eq(diff(u, G.x), 0), sp.Eq(G.x, G.DomainEnd)),
... )

>>> apply_boundary_conditions(bcs)

Output:

Piecewise(
    (Interpolation(u, location=G.x0, value=1, coordinate=global.x, is_left=True), G.x0 + 0.01*G.dx >= global.x),
    (Interpolation(u, location=G.Lx + G.x0, value=0, coordinate=global.x, is_left=False, mirror=True), G.Lx + G.x0 + 0.01*G.dx < global.x),
    (u, True)
    )

Here we used the convenient shorthands Grid.DomainStart and Grid.DomainEnd to reference the start and end of grid domain. Interpolation is a Sympy expression that is used to perform interpolations of values into ghost cells in order to set boundary conditions. For full documentation of the class see the Interpolation API documentation.

Note

If periodic boundary conditions are the desired behaviour, no boundary specification is needed (and no ghost cells should be used) — this is the default.

Complicated Boundary Specifications

For more complicated boundary conditions, for instance when we wish to impose a condition at a different location to where we switch to the expression derived from that condition (e.g. an extrapolation towards a Dirichlet value), boundary conditions can be specified using dicts of type BoundarySpec, which has the following fields:

  • coordinate: the grid coordinate along which the boundary applies (e.g., Grid.x or Grid.y).

  • value: the numerical or symbolic value enforced at the boundary.

  • kind: either "dirichlet" for fixed value or "neumann" for fixed derivative.

  • location: boundary location in coordinate space.

  • side: "left" or "right", indicating which boundary the condition applies to. Can be omitted, in which case it is inferred from the location and grid domain edges.

  • switch_location: location where the resulting expression should switch between original field and interpolation. If omitted, the location attribute is used.

  • flatten: if True, the interpolation is fixed to constant value beyond the set location.

Example implementation for field u:

>>> bcs = (
...    {
...        "value": 2,
...        "coordinate": G.x,
...        "kind": "dirichlet",
...        "side": "left",
...        "location": G.DomainStart,
...        "switch_location": 0,
...    },
...        {
...        "value": 0,
...        "coordinate": G.x,
...        "kind": "neumann",
...        "side": "right",
...        "location": G.DomainEnd,
...        "switch_location": 1,
...    },
... )

>>> apply_boundary_conditions(bcs, field=u)

Output:

Piecewise(
    (Interpolation(u, location=G.x0, value=2, coordinate=global.x, is_left=True), 0.01*G.dx >= global.x),
    (Interpolation(u, location=G.Lx + G.x0, value=0, coordinate=global.x, is_left=False, mirror=True), 0.01*G.dx < global.x - 1),
    (u, True)
    )
